Michell Instruments Easidew PRO I.S. Process Dew Point Transmitter ATEX IECEx FM

ITEM SPECIFICS:

FULL LISTING DESCRIPTION:

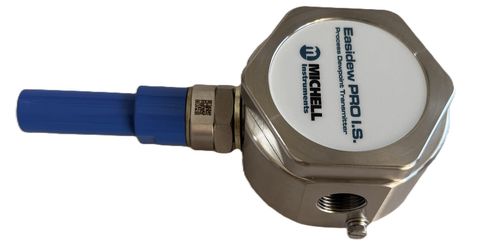

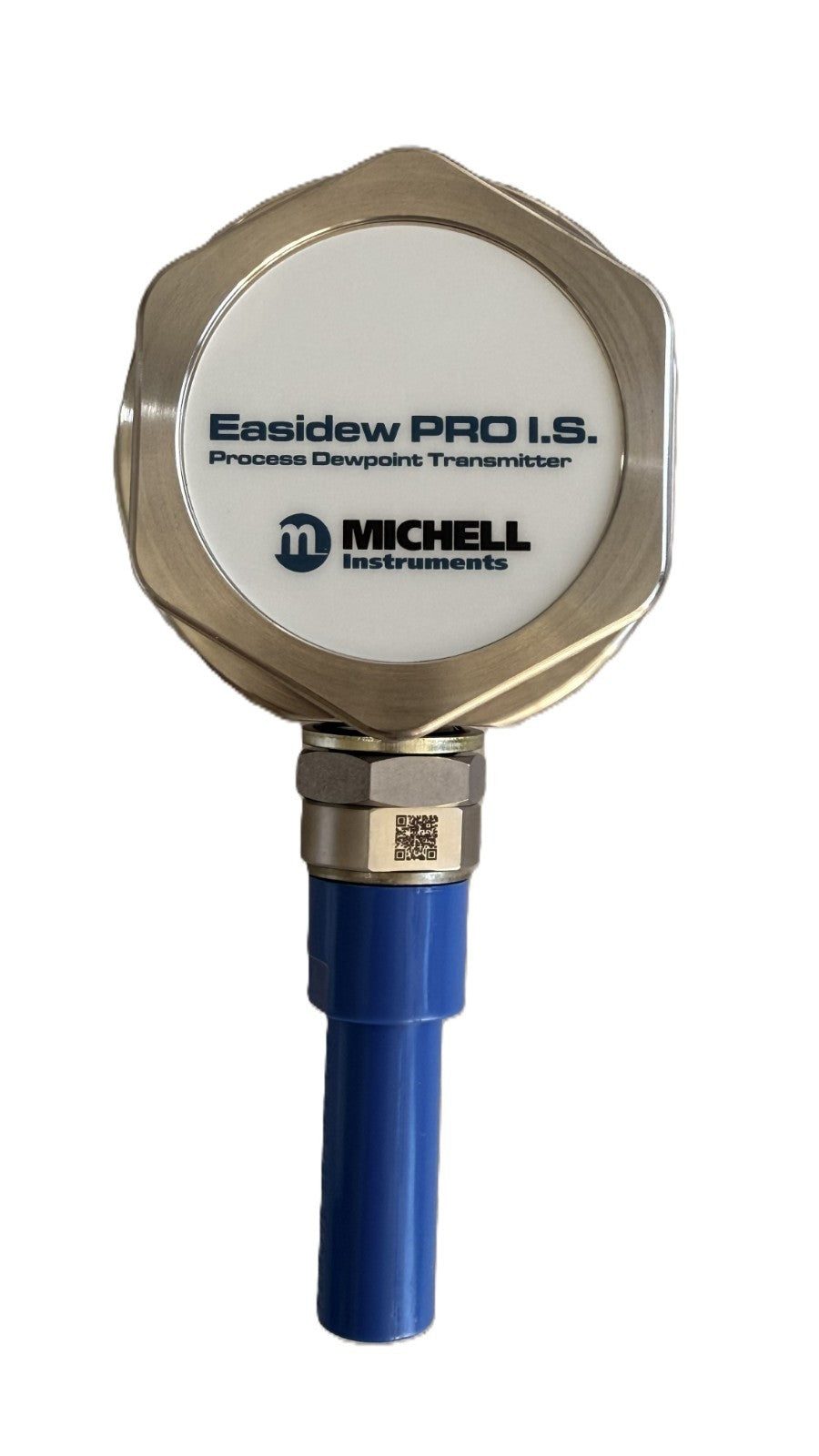

🔵 Michell Instruments Easidew PRO I.S. Process Dew Point Transmitter Intrinsically Safe | ATEX | IECEx | FM Approved | CSA | IP66 | NEW

Genuine UK-Made — Brand New in Original Packaging — Ships Fast from Western Australia

You are purchasing a brand new, genuine Michell Instruments Easidew PRO I.S. Process Dew Point Transmitter. This is a premium, UK-manufactured intrinsically safe dew point transmitter designed for continuous moisture measurement in gases and liquids in hazardous area applications including natural gas, petrochemical, LNG, and industrial process environments.

Unlike many sellers shipping from the UAE or Europe, this item ships from Western Australia, giving Australian and Asia-Pacific buyers significantly faster delivery times.

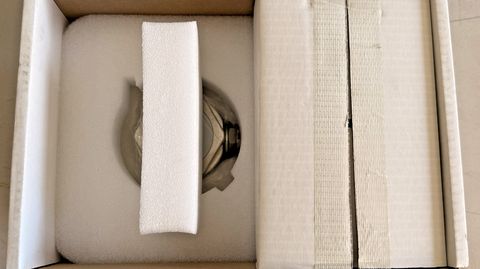

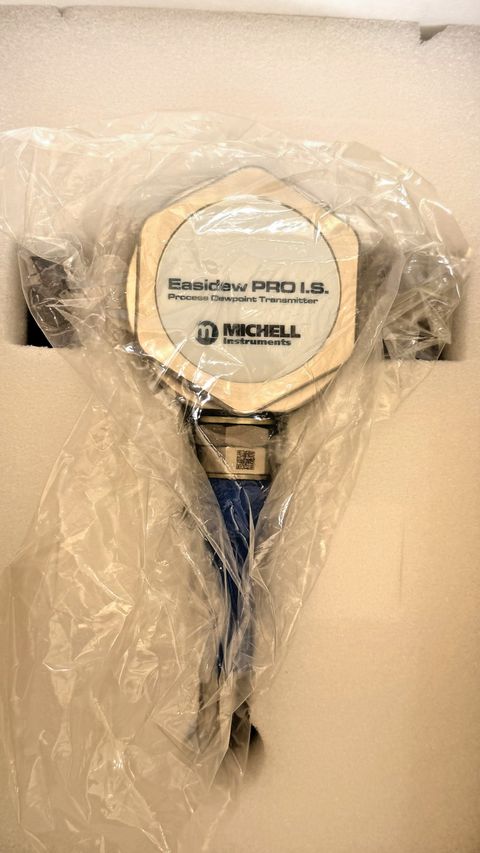

The unit comes in its original foam-lined packaging, still wrapped in protective plastic bag, and includes the original accessory pack of wire ferrule terminals. The unit has never been installed or used.

📋 Part Details:

• Brand: Michell Instruments, Ely, Cambs, UK
• Model: Easidew PRO I.S.
• Type: Process Dew Point Transmitter
• Variant: PRO
• Origin: United Kingdom

⚙️ Full Technical Specifications:

• Measurement Range: -110 to +20°Cdp
• Accuracy: plus or minus 1°Cdp
• Output Signal: 2-wire 4 to 20mA, user-configurable
• Supply Voltage: 28Vdc maximum
• Maximum Supply Current: 20mA
• Input Voltage (Ui): 28V
• Input Current (Ii): 93mA
• Input Power (Pi): 820mW
• Internal Capacitance (Ci): 37nF
• Internal Inductance (Li): 0
• Process Connection: 3/4 inch UNF standard
• Maximum Operating Pressure: 450 barg
• Body Material: 316 Stainless Steel
• Operating Temperature: -20°C to +70°C
• Sensor Technology: Advanced Ceramic Moisture Sensor
• Output Configuration: Dew point or ppmV moisture content
• Minimum Torque: 22.5 lb-ft

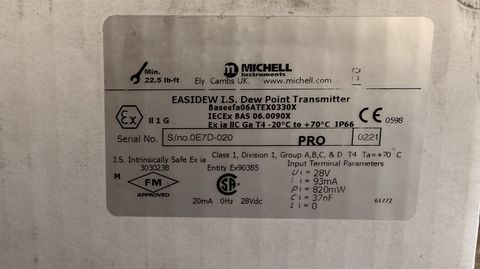

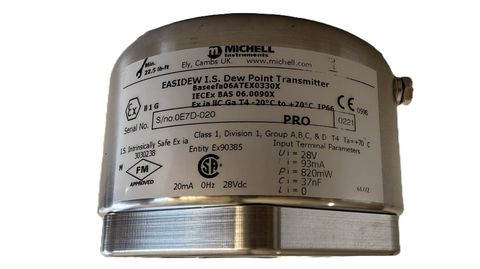

🏆 Hazardous Area Certifications:

• ATEX Certified: Group II, Category 1, Gas (II 1 G)
• Ex ia IIC Ga T4 — Intrinsically Safe, Gas Group IIC, Temperature Class T4
• IECEx Certified — internationally recognised hazardous area certification
• FM Approved — Factory Mutual (USA)
• CSA Certified — Canadian Standards Association
• Class 1, Division 1, Group A, B, C and D, T4, Ta = +70°C
• IP Rating: IP66
• CE Marked

✅ Globally certified for use in Zone 0, Zone 1, Zone 2 (Gas) hazardous areas and North American Class 1, Division 1 locations.

📐 Dimensions and Weight:

• Approximate Head Diameter: 80 mm (hexagonal)
• Approximate Probe Length: 100 mm
• Approximate Overall Height: 180 mm
• Approximate Unit Weight: 0.5 to 1.0 kg
• Packaged Weight (estimated): 2.0 to 3.0 kg
• Packaged Dimensions (estimated): 300 x 250 x 200 mm

⚠️ Dimensions and weight are estimated based on visual inspection and published Easidew PRO I.S. series specifications. Buyers requiring certified engineering dimensions should refer to the official Michell Instruments Easidew PRO I.S. datasheet.

🌍 Typical Applications:

• Moisture measurement in natural gas production and processing
• Pipeline drying and commissioning
• Online fiscal metering of gas
• Dew point measurement in LNG production and processing
• Petrochemical process liquids and gases
• Trace humidity measurement in polymer production
• Moisture analysis in CNG drying
• Dew point measurement in intrinsically safe areas
• Offshore and onshore oil and gas facilities

📦 What's Included:

• Michell Instruments Easidew PRO I.S. Transmitter (1 unit)

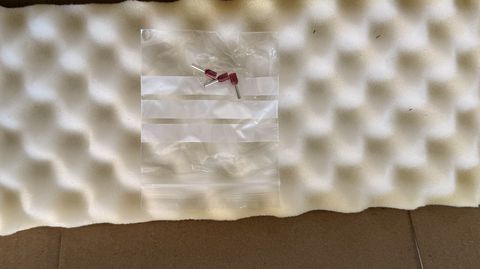

• Original wire ferrule terminal accessory pack
• Original foam-lined protective packaging

✅ Condition:

This transmitter is brand new and has never been installed or operated. It is presented in its original foam-lined box, still wrapped in protective plastic. The accessory pack of wire ferrule terminals is included and sealed. All certifications and traceability labels are fully intact on the unit.

📦 Packaging and Shipping:

• Carefully packaged in original foam-lined box for safe transit
• Ships from Western Australia, Australia — fast delivery for Australian and Asia-Pacific buyers
• International shipping available — please use the eBay shipping calculator or contact us via eBay Messages for a postage quote
• FedEx, HL Express and Australia Post options available
• Combined shipping available for multiple items — please contact us via eBay Messages

🔄 Return Policy —  30 Days:

We offer a 30-days return policy from the date of confirmed delivery.

• Item must be returned in its original, unused, and uninstalled condition in original packaging
• Buyer is responsible for return shipping costs unless the item was incorrectly described or not as advertised
• Refund will be issued upon inspection and confirmation the unit has not been installed, modified, or damaged
• Please contact us via eBay Messages before opening a return so we can assist you promptly
• Returns will not be accepted for items that have been installed, powered up in a process, or show any signs of use or modification

⚠️ DISCLAIMER:

Please read carefully before purchasing:

• It is the buyer's sole responsibility to verify that this instrument is correct and compatible with their specific application, process media, pressure rating, and voltage requirements before purchasing
• We have listed all known specifications and certifications as accurately as possible from the labels and markings on the item; however, we cannot guarantee suitability for every application
• Dimensions and weight stated are estimates based on visual inspection and published series specifications — buyers requiring certified engineering data must refer to official Michell Instruments documentation
• This item is sold as genuine surplus stock — we are not an authorised Michell Instruments dealer and make no warranties beyond what is described in this listing
• Always consult your system engineering drawings, safety documentation, and a qualified instrumentation engineer before installing any measurement device in hazardous or pressurised systems
• Intrinsically safe instruments must only be installed, commissioned, and maintained by suitably qualified and certified personnel in accordance with local regulations and standards
• Recalibration may be required prior to use depending on time elapsed since manufacture — buyers should verify calibration status with a certified calibration facility
• Any reference to brand names, OEM part numbers, certifications, or application references is for identification and information purposes only
• Images shown are of the actual item for sale
